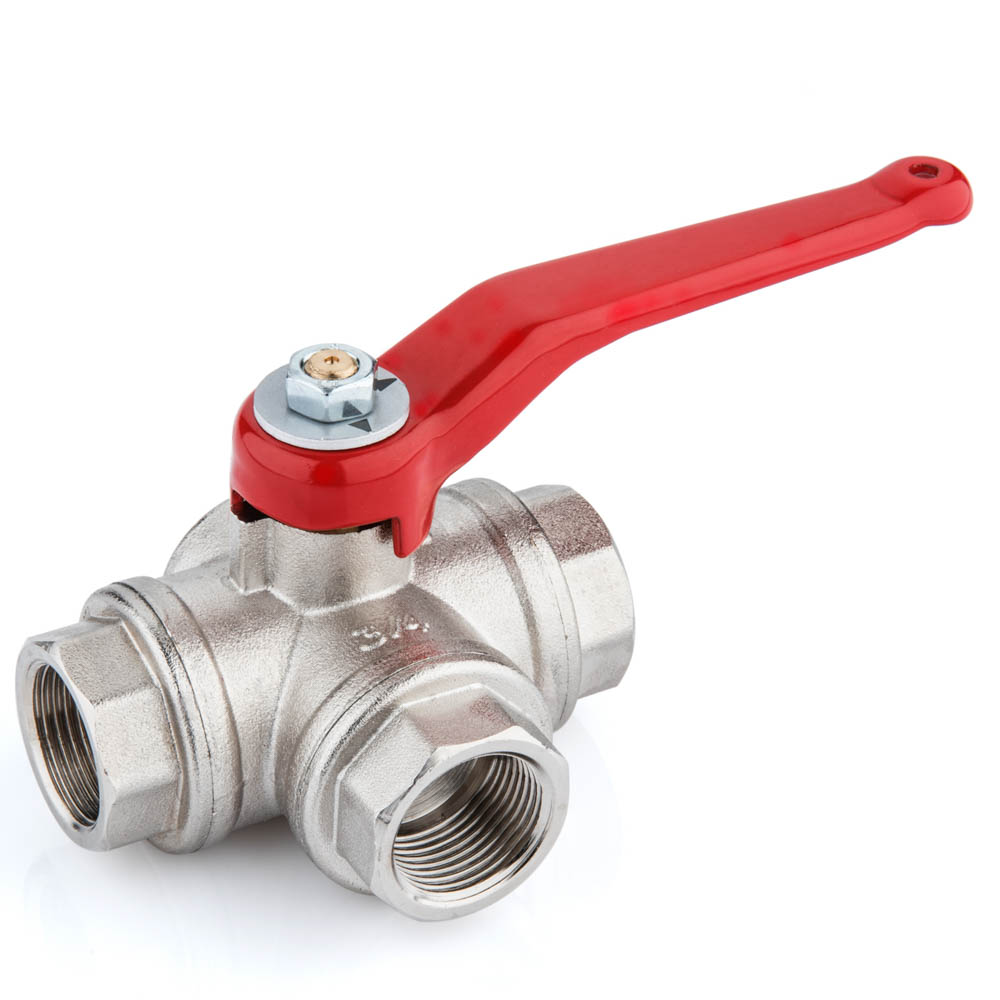

Art. 76Valvola a sfera 3 vie a L
Misure disponibili da 1/4” a 2”
|
DN |
1/4" |
3/8" |
1/2" |
3/4" |
1" |
1"1/4 |
1"1/2 |
2" |
|
L |
76 |
76 |
82 |
90 |
106 |
120 |
142 |
165 |
|
B |
38 |
38 |
41 |
45 |
53 |
60 |
71 |
82.5 |
|
Ø |
10 |
10 |
10 |
15 |
20 |
25 |
32 |
40 |
|
C |
18 |
18 |
17 |
18.5 |
20 |
23.5 |
28.5 |
32 |
|
H |
52 |
52 |
52 |
55.5 |
64 |
76.5 |
93.5 |
103.5 |
|
D |
115 |
115 |
115 |
115 |
150 |
150 |
240 |
240 |
|
75 Gr |
660 |
640 |
625 |
860 |
1480 |
1990 |
3665 |
5730 |
|
76 Gr |
670 |
645 |
635 |
865 |
1490 |
2045 |
3725 |
5860 |
