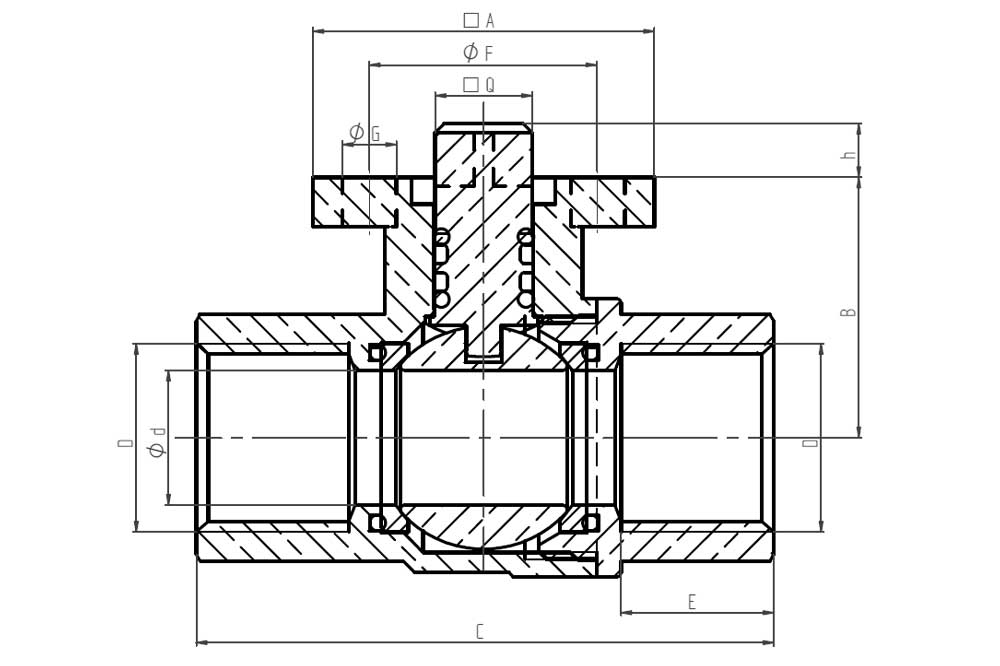

D

¼”

3/8”

½”

¾”

1”

1”1/4

1”1/2

2”

2”1/2

3”

d

11.5

15

15

20

25

32

38

47

64

76

A

38 x 38

38 x 38

38 x 38

38 x 38

50 x 50

50 x 50

50 x 50

50 x 50

70 x 70

70 x 70

B

29

29

29

32,5

37

42

58

64

90

100

C

64

64

64

76

88

96

103

121

165

188

G 4 fori

6

6

6

6

6/7

6/7

6/7

6/7

8.5

8.5

E

17

17

17

19

21

22

22

24,5

34

37

F

36

36

36

36

36/50

36/50

36/50

36/50

70

70

Foratura

F03

F03

F03

F03

F03/F05

F03/F05

F03/F05

F03/F05

F07

F07

h

10

10

10

10

10

10

12

12

16

16

Q

9 x 9

9 x 9

9 x 9

9 x 9

9 x 9

9 x 9

11 x 11

11 x 11

14 x 14

14 x 14

Peso gr

335

315

280

410

705

950

1160

2055

3850

5515
